37680
Fabit

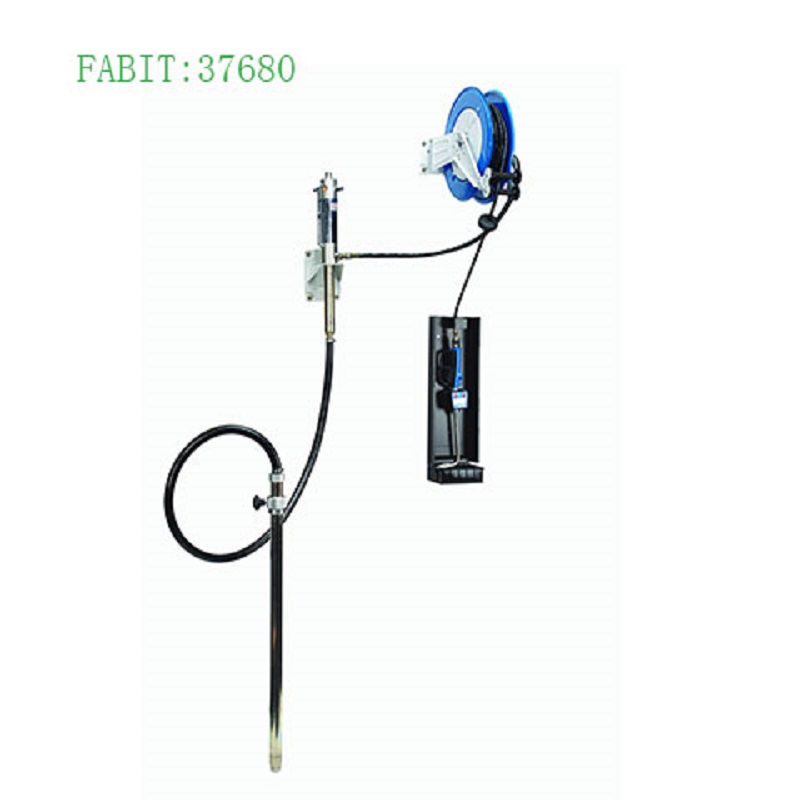

WALL-MOUNTED OIL TRANSFER KIT
Equipped with hose reel series and digital oil gun,
the oil dispensing kit is applied to a drum or tank
of 180~220 KG.
| Model | 37680 |
| Pneumatic pump ratio | 5:1 |
| Air inlet connection | 1/4" |
| Fluid outlet connection | 1/2" |
| Air working pressure | 5-8bar |
| Maximum pressure | 8bar |
| Average air consumption | 320L/min |
| Flow rate | 18L/min |
| Hluid temperature | -10-60℃ |
| Max deliverable oil viscosit | 2405AE |
| Length of pumping tube | 270mm |
| Diameter of pumping tube | 42mm |
| Oil gun series | digital oil gun |
| Type of oil gun nozzle | digital drip-catcher nozzle |
| Measuring precision | ±0.3% |
| Type of hose reel | heavy duty rotary type |
| Length of outlet reelpipe | lUm |
| Length of inlet reelpipe | 1.5m |
| Diameter of reelpipe | 3/8" |
| Oil gun bracket | 150*210*605mm |
| Wall-bracket diameter | 43mm |
| Length of suction hose | 2m |
| Diameter of suction hose | 1" |
| Length of pumping tube | 940mm |
| Diameter of pumping tube | 42mm |
| Package type | Carton |
| Packing size | 565*545*245mm |
| Packing size | 1325*300*155mm |
| Gross weight | 41.8kg |
